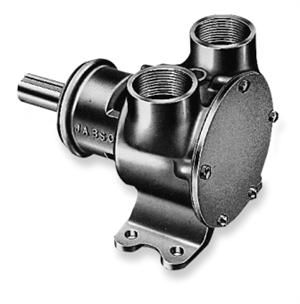

JAB 7420-1001 COOLING PUMP V8-375 HP CAT
|
|
Part Number: JAB7420-1001
|
Raw Water Pump replaces CAT #7W8019 on 3208/3160 engines. Full thickness cam. Ports: 1-1/4" (32mm) NPT Internal.
Flow rate: Nominal 200 Litres/min (44.4 gallons/min) at 1500rpm
Self-priming from dry up to 2.4m (7.8ft)
Features:
• Constructed from marine quality bronze and stainless steel for ruggedness and reliability.
• Easy to service and maintain.
• Inexpensive to buy and operate.
• Will tolerate abrasive wear (this may affect performance - seek advice from your distributer).
• Handles hard and soft solids without clogging.
• Can pump in either direction.
• Will not airlock.
| Specifications:
|
|
|
| Body
|
|
Bronze
|
|
| Impeller
|
|
Neoprene
|
|
| Shaft
|
|
Type 316 Stainless Steel
|
|
| Wearplate
|
|
Replaceable
|
|
| Shaft Seal
|
|
Carbon-Ceramic Face Type
|
|
| Bearings
|
|
Pre-lubricated Double Row Ball
|
|
| Port Type
|
|
1-1/4" (32mm) NPT Internal
|
|
| Weight
|
|
10-1/2 lb 4.8 kg
|
Additional InformationClick here to see product Datasheet
|
